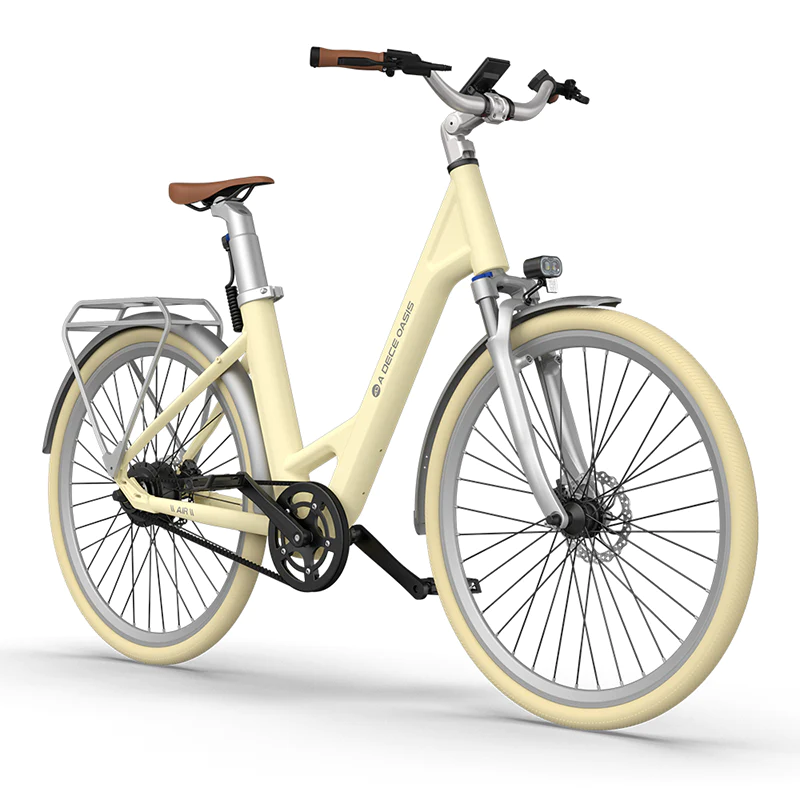

ADO Air 28 Electric Bike

Description

The ADO Air 28 – Sleek, Smart, Urban Commuter

The ADO Air 28 blends style, comfort, and thoughtful engineering for everyday riders and commuters. Its step-through design, maintenance-free components, and integrated technology make it a compelling choice for city travel and weekend adventures.

Key Highlights:

• Smooth, powerful rear-hub brushless motor with torque sensor delivers responsive, natural-feeling pedal assistance.

• Carbon belt drive system requires virtually no maintenance and runs quietly and cleanly—no chain, no grease, no fuss.

• Powered by a Samsung 36V 9.6Ah lithium-ion battery integrated into the seat tube, offering up to 100 km (62 miles) of range on a single charge.

• Speeds up to 25 km/h (15.5 mph) for the CE-compliant version, or up to 30 km/h (19 mph) for international versions.

• Hydraulic disc brakes with 160 mm rotors ensure reliable, confident stopping in all weather conditions.

• Lock-out front suspension fork adds comfort and shock absorption for urban riding or light trails.

• IPS color display provides real-time ride stats and connects to the ADO Smart App via Bluetooth.

• Integrated LED front headlight and electric rear taillight improve visibility and safety.

• Puncture-resistant 700 x 45C tires offer stability, comfort, and efficiency on city roads.

• Lightweight aluminum frame supports riders from 160 cm to 210 cm (5′3″ to 6′11″) and holds up to 120 kg (265 lbs).

• Additional features include a rear rack, full fenders, kickstand, foldable pedals, and optional Apple AirTag holder.

Quick Specs:

• Motor: Rear hub, 250W (CE), up to 350–500W (international), ~37–42 Nm torque
• Battery: 36V 9.6Ah Samsung lithium-ion, removable; 4–6 hour charge time
• Range: Up to 100 km (62 miles)
• Pedal Assist: 0–3 levels with torque sensor
• Top Speed: 25 km/h (CE), 30 km/h unlocked
• Brakes: Hydraulic disc brakes, 160 mm rotors
• Drive System: Gates carbon belt drive
• Tires: 700 x 45C puncture-resistant
• Suspension: Front fork with lock-out function
• Frame: Lightweight aluminum step-through
• Rider Height Range: 160 cm – 210 cm (5′3″ – 6′11″)
• Total Payload: Up to 120 kg (265 lbs)
• Weight: Approx. 21 kg (46 lbs)
• Display: IPS color screen with Bluetooth app connectivity
• Lighting: Automatic LED front light and electric rear light
• Included: Rear rack, full fenders, kickstand, foldable pedals
• Certification: CE, SGS, battery safety certified (UN 38.3)

Why Choose the ADO Air 28?

• Stylish and minimalist design with top-tier urban functionality

• Lightweight, agile, and ultra-low-maintenance with carbon belt drive

• Integrated torque sensor and app-connected display for smart control

• Long range and fast charging for full-day rides and daily commuting

• Safety-focused with hydraulic brakes, lights, and quality components

• Perfect for modern riders who want performance and elegance combined
