Description
Summary
A powerful mid-drive fat-tire e-bike designed for rough terrain, hunting, and trail riding. Features high torque, full suspension, hydraulic brakes, and optional dual-battery long-range capability.
Frame & Size
โข Aluminum alloy frame
โข Frame sizes: 17″ or 19″
โข Rider height range: approx. 5’3″ โ 6’4″

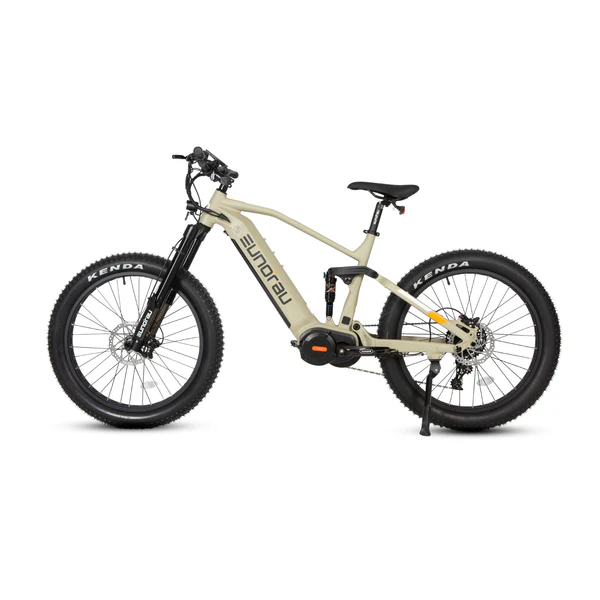

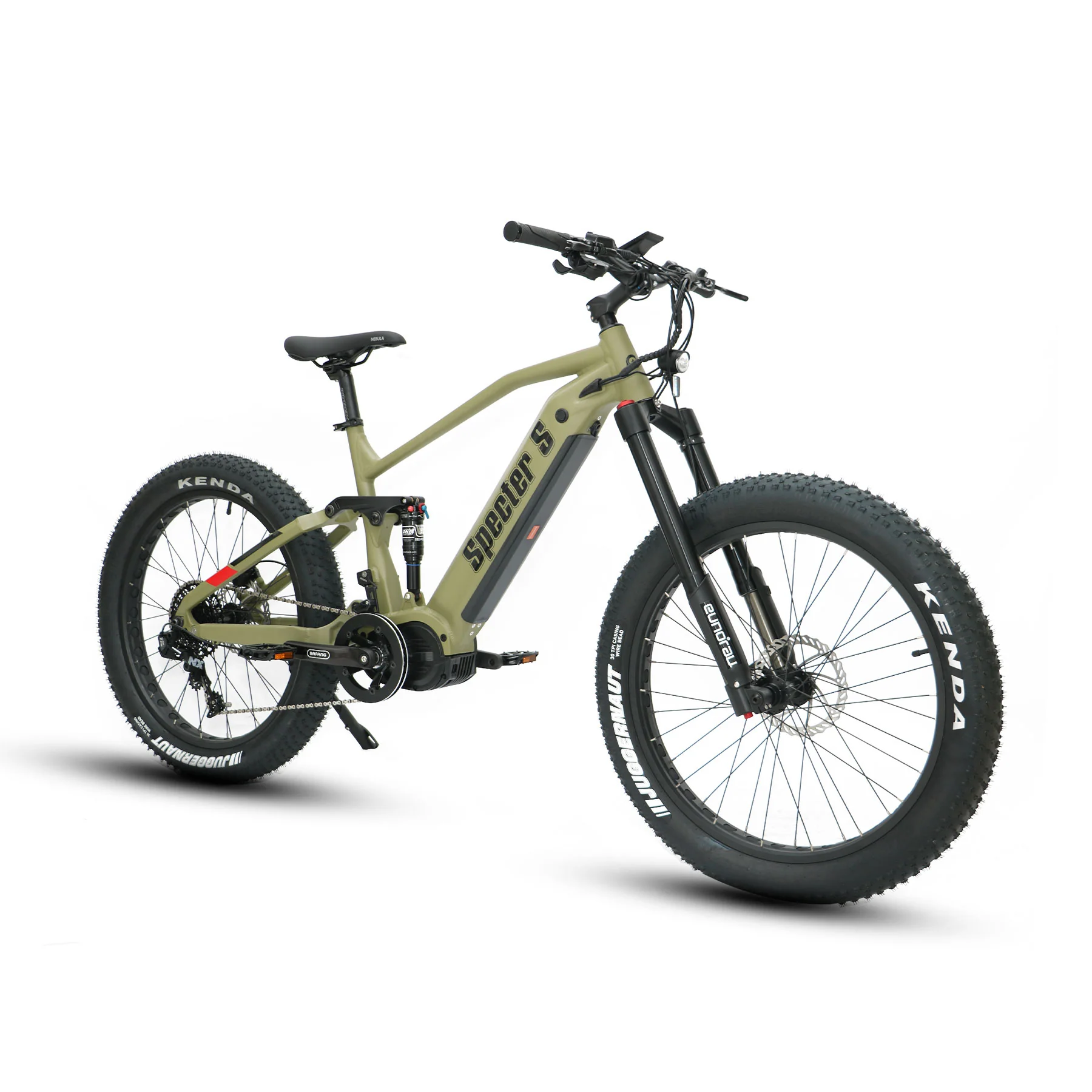

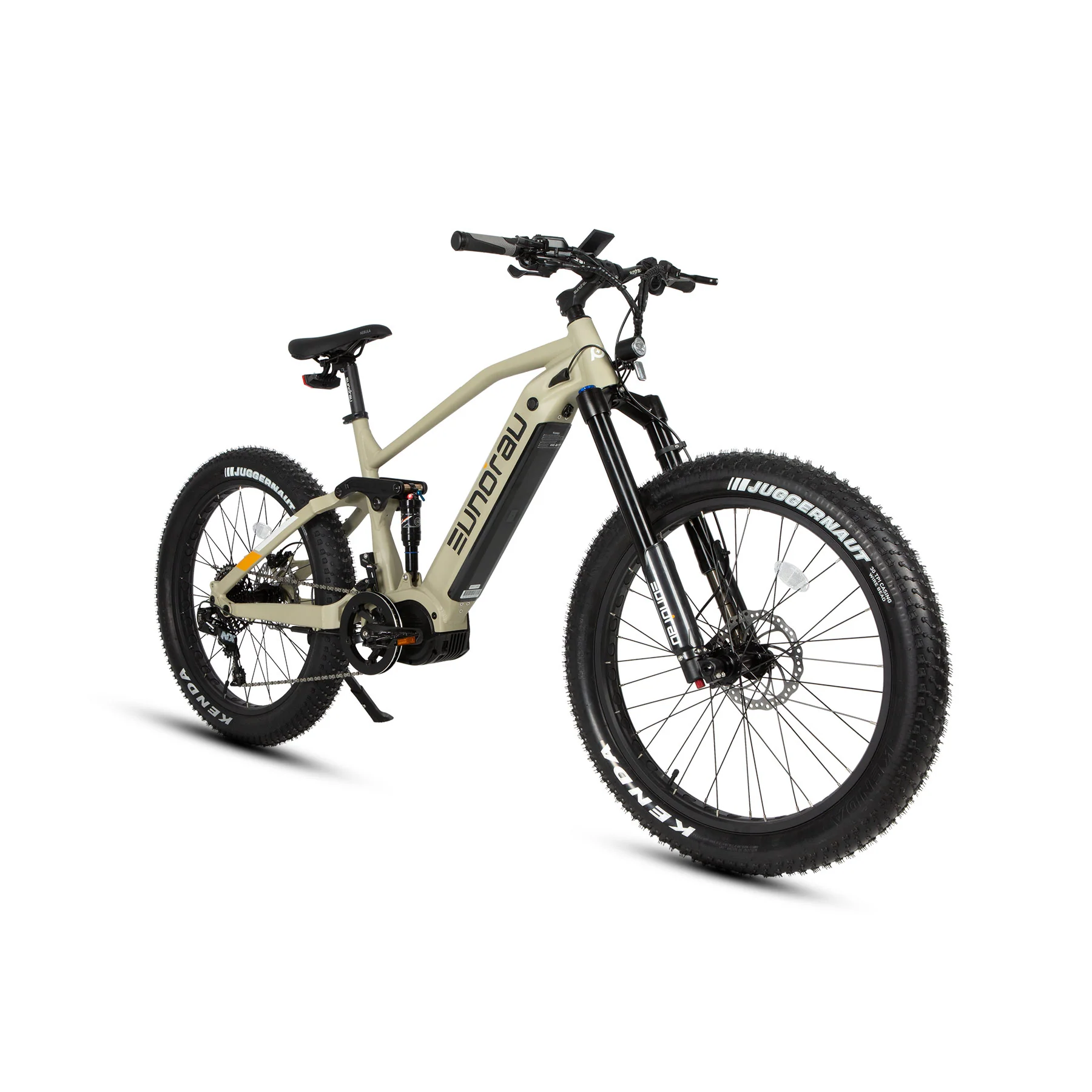

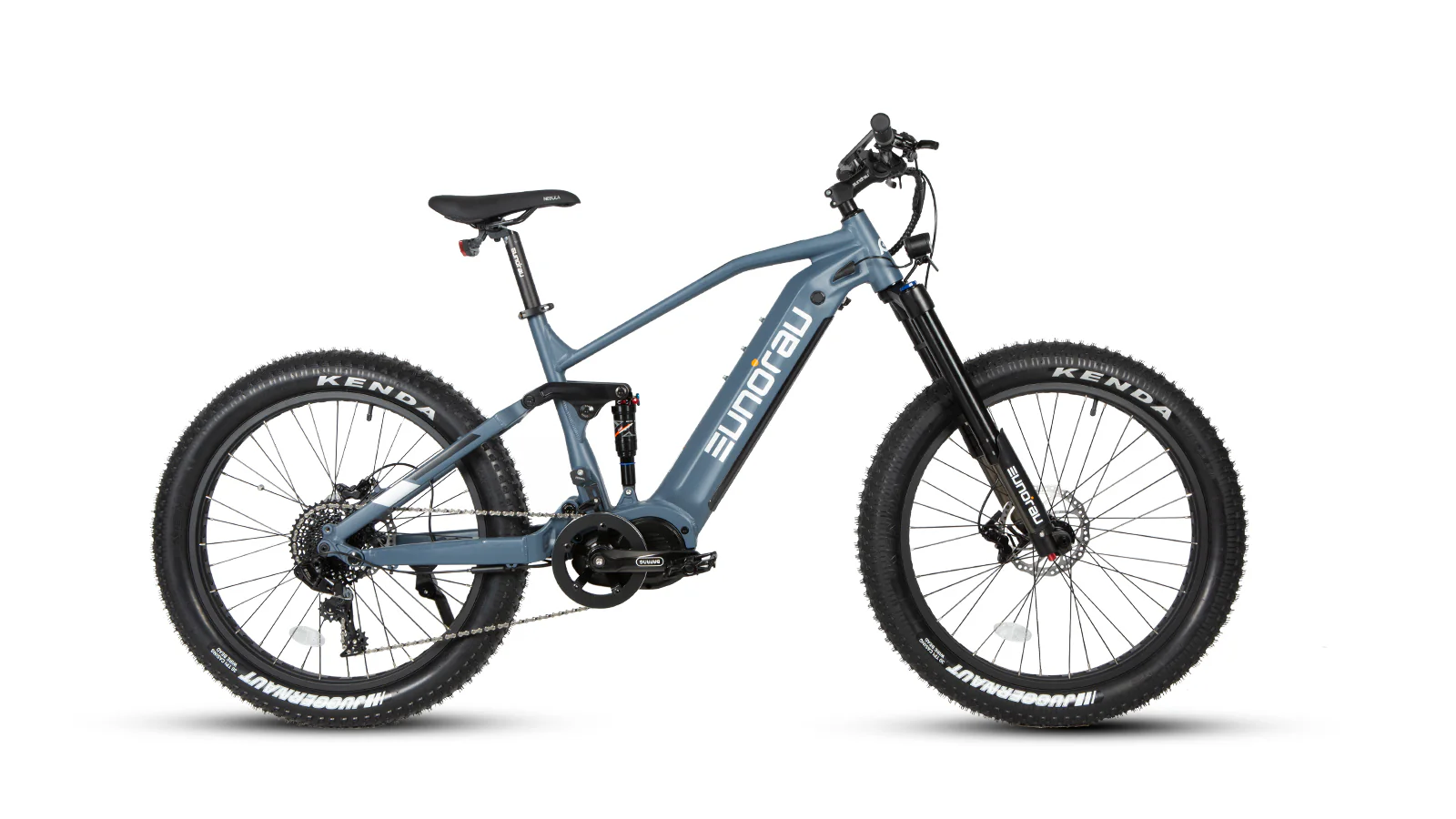

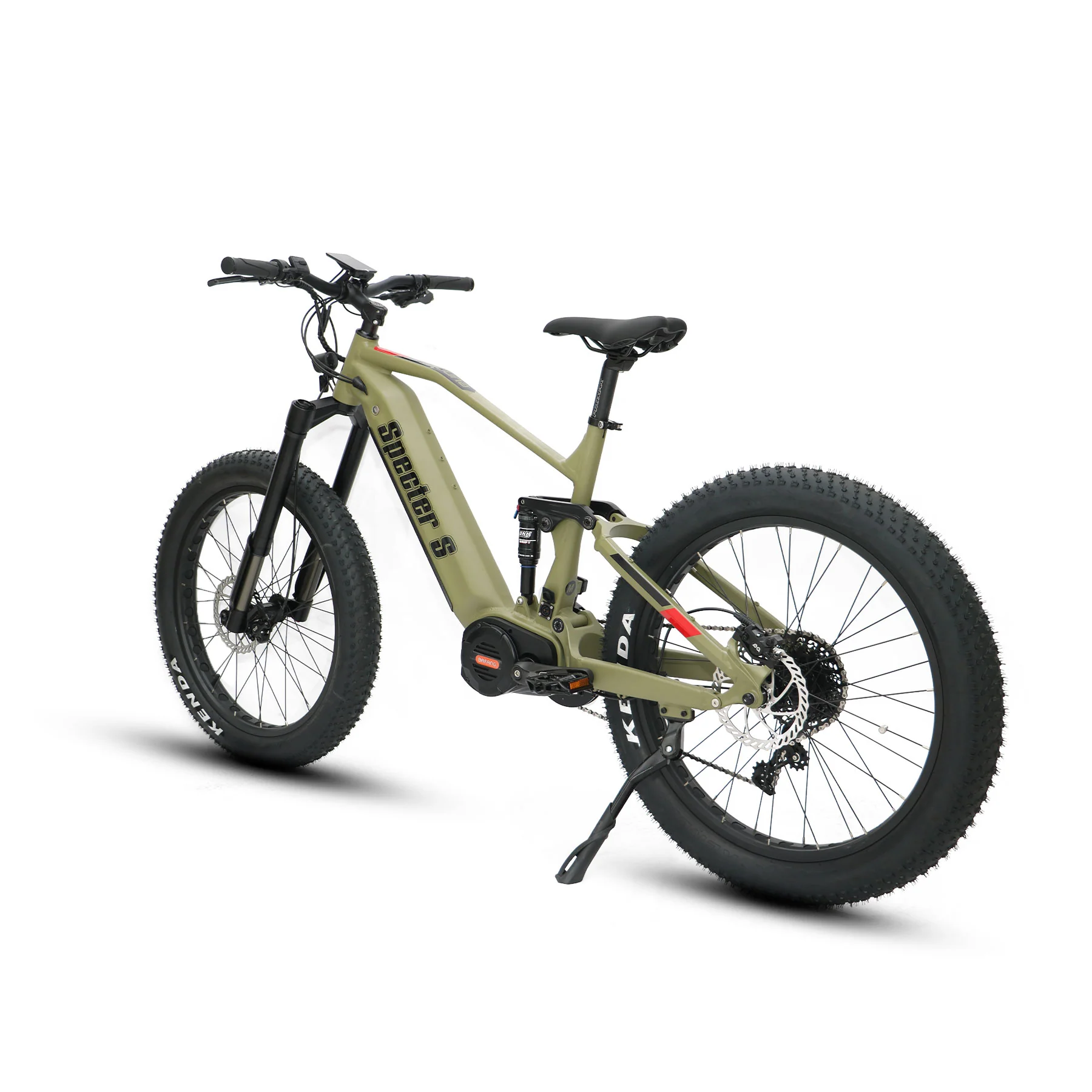

โข Colors: Moon Black, Safari, Army Green
Motor & Performance
โข Motor: Bafang G510 / M620 mid-drive
โข Power: 1000W
โข Torque: approx. 160 Nm
โข Max speed: up to 28 mph (45 km/h)
โข Torque sensor pedal assist
โข Pedal assist levels: 0โ5
โข Thumb throttle included
Battery & Range
โข Main battery: 48V 17.5Ah (LG cells)
โข Optional secondary battery: 48V 15Ah
โข Estimated range: up to 80 miles with dual battery setup
โข Charger: 48V 2A smart charger
Drivetrain
โข SRAM NX 1ร11-speed system
โข Cassette: SRAM NX 11โ42T
โข Chainring: 40T Bafang
Suspension
โข Front fork: Inverted suspension fork, 140 mm travel
โข Rear shock: DNM rear shock, 190 mm travel
โข Full suspension design
Brakes
โข Hydraulic disc brakes
โข 4-piston calipers
โข Motor cutoff brake levers
Wheels & Tires
โข Wheel size: 26 inches
โข Tires: 26 ร 4.0 fat tires
โข Alloy rims
Electronics & Display
โข Display: DPC C010.CB
โข Shows speed, battery level, distance, and assist level
Additional Features
โข LED front light
โข Rear taillight
โข Selle Royal saddle
โข Nylon pedals with reflectors
โข Included basic tool kit
Weight & Capacity
โข Bike weight: approx. 88 lbs (40 kg)
โข Max load capacity: approx. 300 lbs (136 kg)
